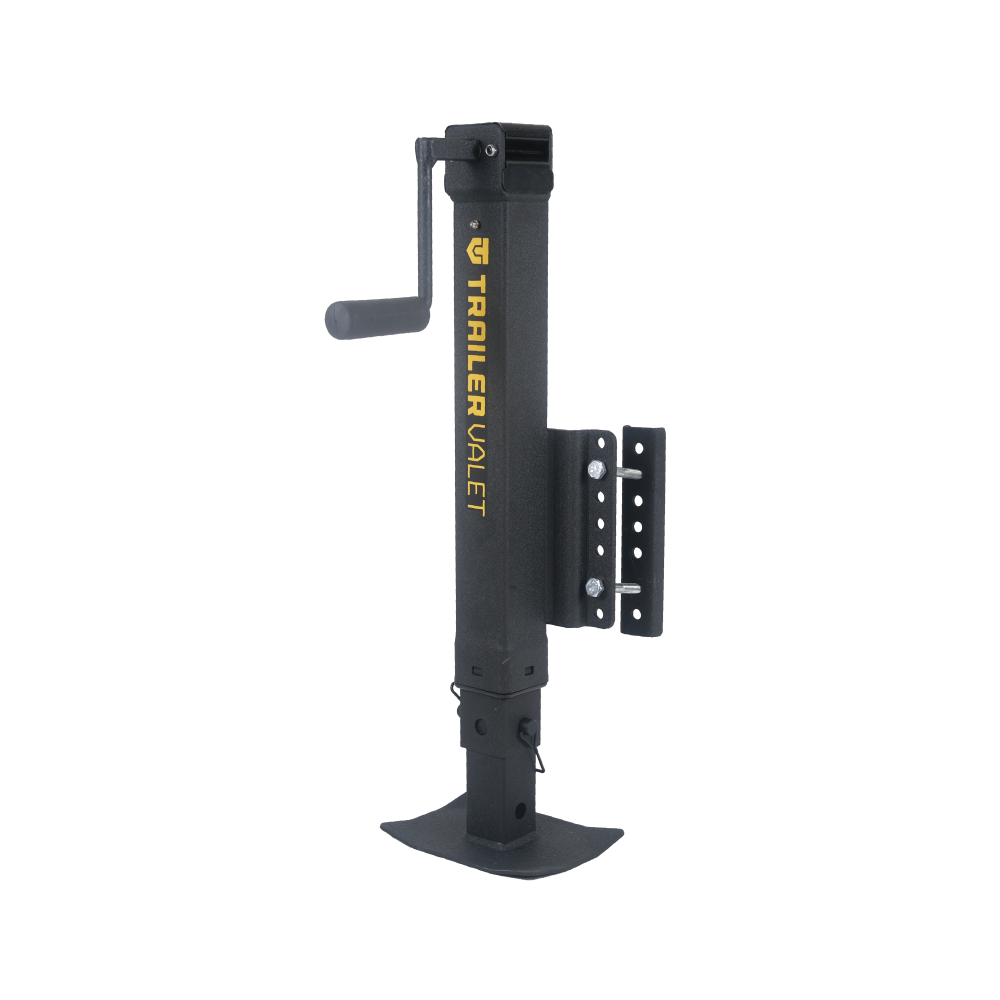

Trailer Valet JX 7K Side-Mount Drill-Powered Jack

• Includes Trailer Valet drill attachment (TVDA), footplate, and hand crank for flexible and efficient operation.
• Zinc-rich coating, nickel plating, and our signature wrinkle black-powder coating deliver long-lasting corrosion protection (700-hour rating).
• Weather sleeve protects internal components and reduces friction, enhancing durability and smooth movement.
• Patented gear system with 3:4 gear ratio provides more mechanical advantage while reducing wear and effort during lifting.
• Larger bolt-on mounting bracket allows quick and secure installation onto trailer frames—no welding required.
• One-piece welded square tube frame offers maximum structural strength for heavy-duty applications.
• Can be manually cranked or powered by any 20–24V compact non-impact drill using the Trailer Valet drill attachment for faster operation.
• Heavy-duty drop leg with welded-on footplate offers an extra 13.7 inches of extension for additional height control.
• Capacity ratings: 7,000 lbs (3,175 kg) static weight, 1,800 lbs (816 kg) lift with manual crank, 900 lbs (408 kg) lift with drill-powered operation.
• Retracted height: 23" (58.42 cm); Extended height: 49.5" (125.73 cm); Lift: 13.6" (34.54 cm); Drop leg: 13.7" (34.8 cm); Total travel: 26.5" (67.31 cm)
• Tube dimensions: Outer tube – 65 mm square; Inner tube – 57 mm square; Drop leg – 50 mm square.
• Clearance: 18.5" (46.99 cm) from bottom of bracket to top, 14.4" (36.58 cm) from mount to top
• Max Frame Size Fit: 6" high × 3.75" deep (15.24 cm high x 9.53 cm deep).

• Dynamic Lift Capacity: 1,800 lbs (816 kg)
• Static Tongue Weight Capacity: 7,000 lbs (3,175 kg)
• Static Capacity with Footplate: 7,000 lbs (3,175 kg)
• Mounting Type: Side
• Item Height: 23" (58.42 cm)
• Item Width: 8" (20.32 cm)
• Item Depth: 8" (20.32 cm)
• Item Net Weight: 27.5 lbs (12.5 kg)
• Warranty: 1-Year Manufacturer's Limited Warranty
• Includes: Jack, drill attachment, footplate, hand crank

Width: 8"
Depth: 8"
Height: 23" (retracted)
13" lift extension + 13" drop leg extension = 26" total lift
Final extended height: 49"

We suggest using your existing jack, a stabilizer block, jack stands, or wood blocks. You'll need at least 16–18 inches of clearance to properly install the JX.

No, the JX comes pre-lubricated. We recommend greasing the internal acme rod every 90 days using the grease fitting near the drive shaft. General-purpose grease can also be applied directly to the miter gears by removing the gearbox cap if needed.

Static capacity: 7,000 lbs
Lift (manual crank): 1,800 lbs
Lift (with power drill): 900 lbs

Use the lowest torque setting that can still lift your trailer. Heavier loads may require a higher torque setting. Always engage the drill slowly to prevent sudden strain on the gears.

No, a caster wheel is not available for the JX 7K model at this time.

Yes, bolts are included for trailer tongues up to 3.75 inches thick. Longer bolts may be substituted if required.

The unit weighs approximately 27.5 lbs.

Submerging the unit is not recommended as it may erode internal lubricants. If exposed to salt water, rinse thoroughly with fresh water after use.

Yes, the JX features three layers of weather protection and is designed to be stored outdoors along with your trailer.

Use any 20–24V compact, non-impact drill. Higher voltage models are recommended for better performance on heavier loads.

No. Only the Trailer Valet-specific drill attachment is recommended. It is specially designed for a snug fit on the JX driveshaft. Using a standard socket may cause breakage and damage the unit.
