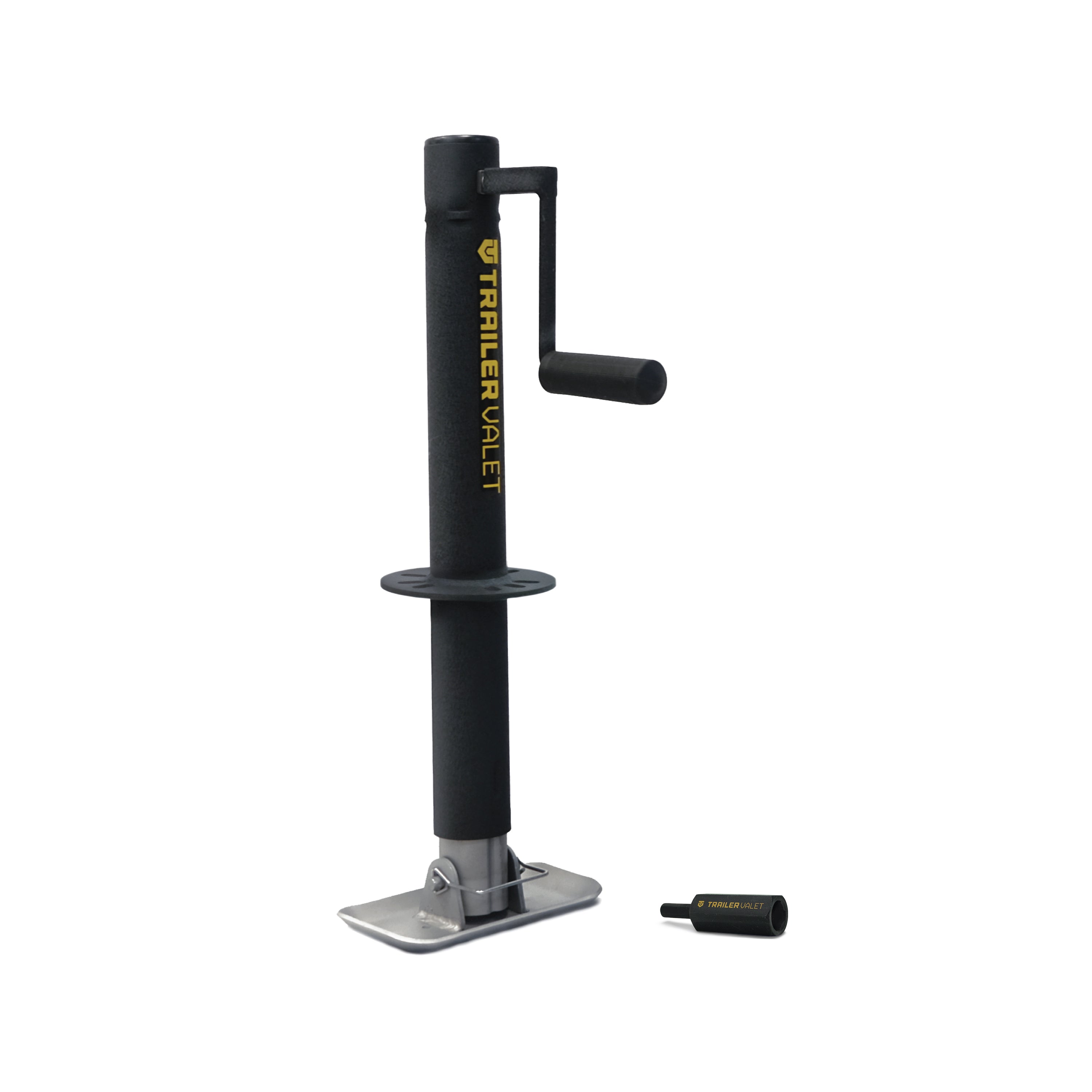

The Trailer Valet JX 2K Center is a manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment.
It has a static capacity of 2,000 lbs and a lift capacity of 1,200 lbs with the hand crank and 600 lbs lift capacity with the drill. Its patented gear material composition delivers maximum efficiency while reducing heat retention. The JX 2K Center comes with weather-resistant shield protection, and is topped with our signature wrinkle black powder coating so that you can go further, longer.
It’s time to MOVE FORWARD and replace the standard manual jack on your trailer! Power it up and save time, effort, and hassle and get to what you love most. Comes standard with foot plate and a Trailer Valet Drill Attachment. JX Wheel attachment sold separately. (JX2-C - 1:1 Gear Ratio, 2,000 lbs. static capacity) (JX5-C - 12:16 Gear Ratio, static 5,000 lbs. capacity.)
If you have any inquiries about if this product will work for your specific trailer or environment, please reach out to our Support Team at support@trailervalet.com
Features
- Includes Trailer Valet Drill Attachment (TVDA), footplate, and hand crank
- Zinc-rich coating, nickel plating, and finished with our signature wrinkle black powder coating
- Patented Trailer Valet Gear System (1:1 Ratio)
- Patented gear material composition delivers maximum efficiency while reducing heat retention
- Weather resistant shield protection
- Manual hand-crank jack that has the versatility and capability to be powered by any 20-24V compact drill with the Trailer Valet Drill Attachment
- Center mount system
- Compatible with JX Jack Wheel Attachment (TVJXMW), sold separately
- Retracted height: 23in, Extended height: 37in, Total travel: 14in
- Static Capacity (with footplate): 2,000 lbs Static Capacity (with wheel): 1,200 lbs Lift Capacity: 1,200 lbs Lift Capacity w/ Drill: 600 lbs
- Outer tube diameter: 57mm, Inner tube diameter: 51mm
- Clearance (from bottom of bracket to top of jack): 13.5in
- Total Trailer Lift: 9.5in to 23.5in
Specifications
- Dynamic Lift Capacity Lbs: 1200
- Static Tongue Weight lbs: 2000
- Static Weight Capacity with Footplate Lbs: 2000
- Mounting Type: Center
- Item Height Inches: 22.5
- Item Width Inches: 5
- Item Depth Inches: 5
- Item Net Weight lbs: 13
- Warranty: 1 Year Manufacturers Limited Warranty
- Includes: Includes Jack, Drill attachment, footplate, and hand crank
How do you recommend propping up the trailer for installation?
A few suggestions we have for propping up your trailer are using your existing jack, a stabilizer block, jack stands, or wood blocks. You will need at least 16–18 inches of height to properly install the JX.
Can the center jack (JXC) be welded rather than bolted?
Yes, at your discretion. However, welding the unit will void any warranty and return eligibility.
Do I need to grease the gears before use?
No, the JX comes pre-lubricated. We recommend greasing the internal gear system every 90 days. Please refer to the product manual for instructions.
What is the load capacity of the JX?
JX2-C & JX2-S: 1,200 lb standard lift, 600 lb lift with power drill, and 2,000 lb static capacity.
JX5-C & JX5-S: 1,600 lb standard lift, 800 lb lift with power drill, and 5,000 lb static capacity.
What is the recommended drill torque setting?
We recommend using the lowest torque setting that still effectively lifts the trailer. Heavier trailers will require higher torque settings.
Does the JX come with a caster wheel?
Each JX comes standard with a footplate. The JX Wheel (TVJXMW) is available as an optional upgrade.
Does the JX Center Mount come with bolts for installation?
Yes. All JX Center models include three bolts and lock washers for installation onto your trailer frame.
What type of Mount Bracket comes with the JX2-S and JX5-S?
The JX2-S comes with a spring-loaded pull pin swivel bracket for a max frame size of 4.75 inches high and 3.75 inches deep.
The JX5-S uses the same pipe mount swivel bracket and stow pin. It is also compatible with the optional TVJLMB bracket (sold separately) for frames up to 5.75 inches high. Both models require at least 8 inches of clearance for installation.
What is the best position for the JX5-S Mount Bracket to be installed?
The connection point should ideally be installed in the low position, though it can be flipped to the high position depending on trailer frame configuration.
How much does the JX weigh?
JX2-S: 23 lbs
JX5-S: 25 lbs
JX2-C: 14 lbs
JX5-C: 14 lbs
Can the JX be submerged in water?
The JX can be submerged briefly. If exposed to salt water, rinse thoroughly with fresh water after each use to prevent corrosion.
Can the JX be stored outdoors?
Yes, the JX features three layers of weather protection and is suitable for outdoor storage with your trailer.
What kind of drill should I use with the JX?
You can use any 20V–24V compact, non-impact drill with the Trailer Valet Drill Attachment for efficient lifting and lowering.
